CONTAINERIZED ENERGY STORAGE SYSTEM
| 10ft | 20ft | 40ft | |
| Output voltage (V) | 380/400+15% | ||
| Grid frequency (Hz) | 50/60(±2.5) | ||
| Output power (kw) | 50~100 | 50~500 | 250~630 |
| Battery capacity(kWh) | 50~400 | 200~1500 | 800~3000 |
| Battery Type | Lithium iron phosphate battery | ||
| Dimensions(D*W*H)mm | Inner:2831*2352*2385 | Inner:2352*5898*2385 | Inner:2352*12032*2385 |
| Outer:2438*2991*2591 | Outer:2438*6058*2591 | Outer:2438*12192*2591 | |
| Protection level | IP54 | ||
| Humidity range (%RH) | 0~95 | ||
- Description

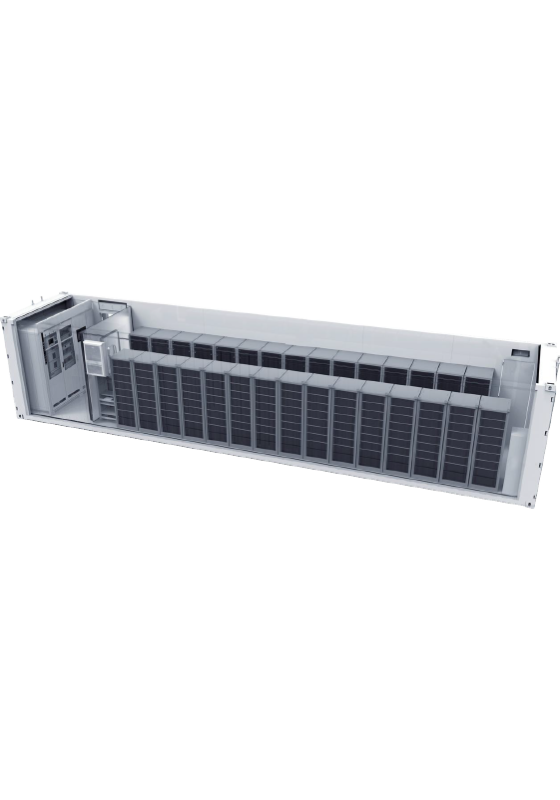

The containerized energy storage system includes: BESS, bidirectional power conversion system (PCS), DC conversion system (PDS), microgrid switching system (STS), energy management system (EMS), auxiliary power distribution system, air conditioning system, and fire protection.
Performance characteristics
According to customer needs, the type and capacity of the battery system can be flexibly configured
PCS adopts modular, power frequency overall architecture, simple maintenance, flexible configuration, and can realize multiple parallel machines
Supports on-grid and off-grid operation mode, seamless switching, and supports black start
EMS unattended system, local control, cloud monitoring operation, with highly customizable functions
With peak shaving and valley filling, demand response, anti-reverse flow operation, backup power supply, command response and other modes
With a complete gas fire extinguishing system and automatic fire monitoring and alarm system, sound and light alarm and fault transmission
With a complete heat dissipation and temperature control system to ensure that the temperature of the battery compartment is within the optimal working range
The access control system has remote control and on-site operation functions
